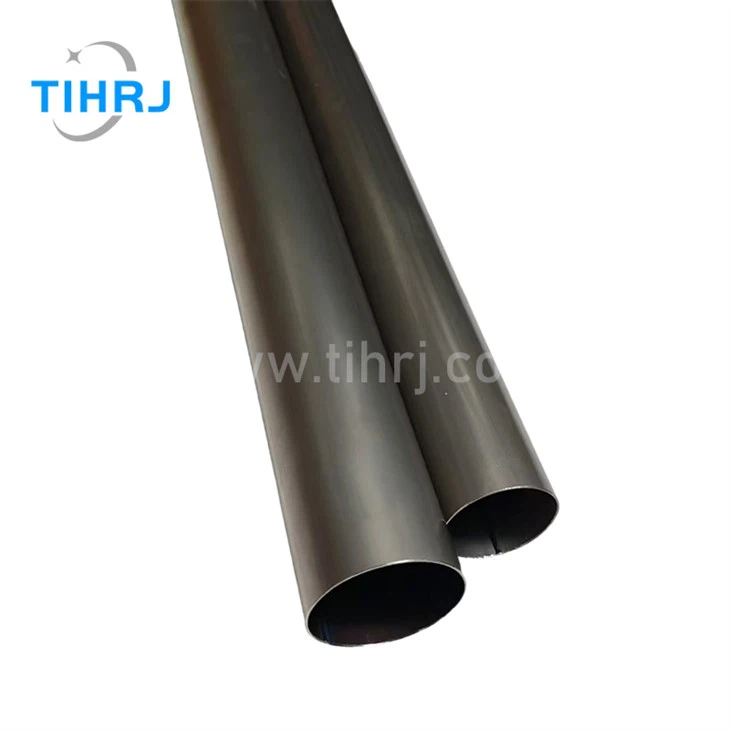

GR2 High Performance Titanium Straight Tube

Consistent purity: Compliant with ASTM B338 / ASTM B861 / ASME SB-338; typical purity ≥99.2%

Lightweight, strong: Density ~4.51 g/cm³; 40–50% weight reduction vs. stainless steel

Excellent corrosion resistance: Stable in seawater, chlorides, and mild acid/alkali media

High-temperature capability: Reliable strength and toughness up to ~300°C (higher for short durations)

Biocompatible: Nickel-free, non-toxic; suitable for medical and food-contact scenarios

Fully customizable: OD, wall, length, surface finish, and tolerance classes

GR2 (Grade 2) titanium straight tubes combine medium strength, outstanding formability, and superior corrosion resistance, making them ideal for aerospace, chemical processing, marine, automotive, medical, and premium sports equipment. Produced via vacuum melting and precision cold working, both inner and outer surfaces are clean and smooth with stable dimensions. The tubes offer excellent weldability and machinability for projects demanding low weight, reliability, and long service life.

Grade: Commercially Pure Titanium Grade 2

Standards: ASTM B338 (condenser/heat-exchanger seamless/welded tubes), ASTM B861 (industrial tubes), ASME SB-338

Typical chemistry: Ti balance; O ≤ 0.25%, C ≤ 0.08%, N ≤ 0.03%, H ≤ 0.015%, Fe ≤ 0.30%

Tensile strength Rm ≥ 345 MPa

Yield strength Rp0.2 ≥ 275 MPa

Elongation A ≥ 20%

Vickers hardness HV ≤ 200 (typical)

Density: ~4.51 g/cm³

Elastic modulus: ~103–110 GPa

Thermal conductivity: ~16–18 W/m·K

Outside diameter (OD): 6–114.3 mm (others on request)

Wall thickness (WT): 0.5–6.0 mm (thicker walls available)

Length (L): 1000–6000 mm (fixed/random/custom cut)

Tolerance: H9/H10 or per drawing

Straightness: ≤1.0 mm/m (tighter options available)

Ovality/End squareness: Controllable per GB/T or ASTM project specs

Surface finishes: Pickled matte, mechanical polish, sandblasted, brushed, internal cleanliness treatment

Processing services: Custom cutting, beveling, flaring/reducing, perforation, welding support, tube bending

Welding guidance: GR2 or GR12 filler as applicable; high-purity argon shielding

Chemical & Marine: Heat exchangers, condensers, desalination, chloride-rich and salt-mist pipelines

Aerospace: Lightweight fluid lines, structural supports, ECS components

Automotive & Motorsports: Intake/exhaust, cooling systems, lightweight frames

Medical & Food: Clean fluid transfer, lab equipment, biocompatible devices

Sports & Consumer: Bicycle frames, outdoor gear, audio and premium custom parts

NDT: Eddy current / ultrasonic / hydrostatic testing (reports on request)

Dimensional: OD, WT, ovality, straightness (100% or sampling)

Surface: Post-pickling 100% visual to ensure no cracks, laminations, or inclusions

Certifications: MTC 3.1; RoHS/REACH compliance if required

Traceability: Heat/lot number marking and batch control

Cleaning: Neutral or mildly alkaline detergents; avoid prolonged exposure to strong oxidizers

Storage: Dry, ventilated area; layered supports; protect from scratches and pitting

Fabrication: Use larger bend radii with mandrel or ball support to reduce springback

Packaging: Moisture barrier + protective end caps + reinforced wooden case/pallet; suitable for sea/air freight

Lead time: Stock for common sizes; custom 7–20 working days (order-dependent)

MOQ: Supports small trial batches and samples

Please provide:

Grade and standard (e.g., GR2, ASTM B338)

Size (OD × WT × Length)

Surface and processing requirements (e.g., pickled/polished/beveled/bent)

Quantity and target lead time

Application or medium (to optimize recommendation)
