Mechanical Properties & Chemical Composition Of Titanium Welded Pipes

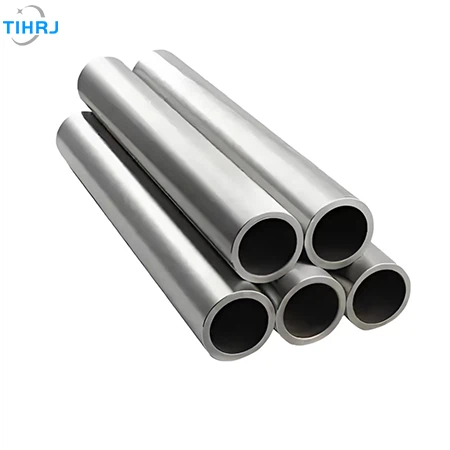

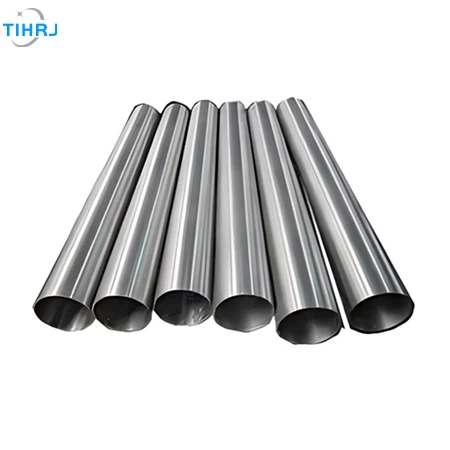

GR2 titanium welded pipe is a widely used commercial pure titanium material in industry, and its mechanical properties such as chemical composition and tensile strength have clear standards and characteristics.
The main chemical components of GR2 titanium welded pipes are as follows: titanium (Ti) is the matrix, the content is not less than 99%, and contains a small amount of impurity elements, including nitrogen (N) ≤0.03%, carbon (C) ≤ 0.08%, hydrogen (H) ≤ 0.013% or ≤ 0.015%, iron (Fe) ≤ 0.30%, and oxygen (O) ≤ 0.25%. The presence of these impurities has a significant impact on the mechanical properties of the material, such as oxygen, which can improve the strength to a certain extent.
The tensile strength of GR2 titanium welded pipe is its core mechanical property index. The material has a tensile strength of no less than 345 MPa (i.e., 345 MPa≥) in the annealed state, which typically ranges from 330 MPa to 430 MPa. It specifies a non-proportional extension strength (yield strength) of not less than 275 MPa and ranges from approximately 275 MPa to 450 MPa. In addition, GR2 titanium welding also has good plasticity, and its elongation after breaking is not less than 20%.
These mechanical properties of GR2 titanium welded pipes are closely related to their chemical composition and processing state. For example, its strength is mainly derived from the solution strengthening of titanium itself and the gap element oxygen. The material has excellent corrosion resistance, especially in neutral and oxidizing media (such as seawater, nitric acid, hypochlorite solution) and wet chlorine gas, which makes it widely used in chemical, desalination, aerospace and other fields. However, the specific mechanical properties may vary slightly depending on the product specifications (e.g., wall thickness, diameter), manufacturing process (e.g., welding process, subsequent heat treatment), and the standards performed.
Welding Process Of Titanium Welded Pipe
Titanium tube welding technology is a technique used to weld titanium pipes. Due to titanium's high melting point, good chemical stability and strength, and wide range of applications, titanium tube welding technology is very important in aerospace, chemical, marine engineering, and other fields. Here are some common titanium tube welding techniques:
Inert Gas Shielded Welding (TIG Welding): This is one of the most commonly used methods for welding titanium tubes. TIG welding uses an inert gas (such as argon) to protect the weld area from oxygen and nitrogen contamination of titanium. It can provide high-quality welds but at a slower speed.
Electron Beam Welding: Electron beam welding uses high-speed electron beams to locally heat and melt titanium tubes to form welds. It is capable of high energy density welding with high welding speeds and small heat-affected zones.
Laser Welding: Laser welding utilizes a high-energy laser beam to melt and weld titanium tubes. It enables a precisely controlled welding process, with the advantages of high speed and high quality.
Cladding Welding: Cladding welding involves spraying titanium powder onto the surface of the titanium tube, which is then melted and fused with the substrate through a heat source. This method is suitable for repairing or strengthening specific areas of titanium tubing.
Before welding titanium pipes, strict preparations are required, such as cleaning the pipe surface and preheating the pipe. In addition, it is necessary to select appropriate welding materials, welding parameters and welding equipment to ensure weld quality and connection strength.
