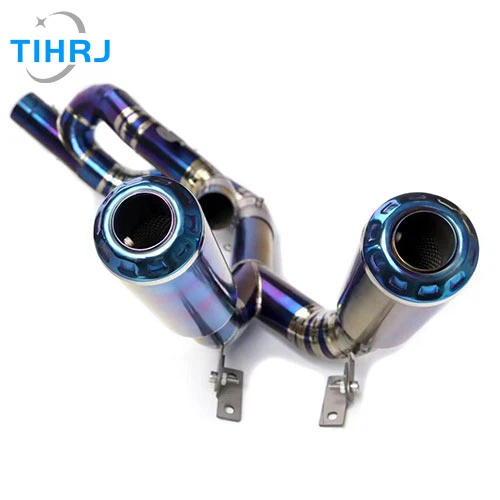

Advantages of Motorcycle Titanium Exhaust
The advantages of titanium motorcycle exhaust pipes are all-round and obvious. The first and most attractive advantage is the ultimate lightweight. Titanium alloy has a density of only about 60% of stainless steel, which means that the weight of an exhaust pipe with the same structure can be nearly half that of stainless steel. This weight reduction effect is given the golden meaning of "unsprung quality" on motorcycles - reducing the weight of non-supporting components such as wheels and suspension can greatly improve the vehicle's handling agility, make the steering more flexible, and the suspension response is faster, giving the rider a sense of precision driving of "man and vehicle integration" as a whole.
Secondly, it is its excellent performance in terms of performance and durability. Titanium alloys have exceptional specific strength and high heat resistance, and can withstand exhaust gases from engines up to 700 degrees Celsius or more without deformation or degradation. Compared with steel or stainless steel, the pipe wall of the titanium exhaust pipe can be designed to be thinner, which not only further reduces weight, but also creates conditions for optimizing the exhaust pulse effect and reducing back pressure, thereby helping to increase the engine's horsepower output in the high rpm range, especially in the mid and high rpm range, which can bring about 4 to 5 horsepower gain. At the same time, titanium alloy is born with strong corrosion resistance, which can resist the erosion of acidic substances in the exhaust gas and the environment, and its service life far exceeds that of ordinary steel, and it will almost never be rusted.
In addition, titanium exhaust pipes bring unique acoustic and aesthetic value. The finely tuned titanium exhaust pipe is not the dull roar of stainless steel, but a crisper, high-pitched and metallic magnetic howl, a unique audio feature that is loved by knights who seek sensory stimulation. In terms of appearance, the unique matte silver-gray texture of titanium itself is very technological, and it can be anodized to make its surface show a gorgeous color effect from gold, blue to purple, this highly personalized appearance cannot be achieved through ordinary electroplating, which greatly satisfies the owner's pursuit of the uniqueness of the car.
The Bending Process of Motorcycle Titanium Exhaust
Sand filling hot bending: This is a classic handmade process. By filling the titanium tube with fine sand and sealing it with wood chips, the sand particles provide uniform support on the inner wall when bending, and then use propaneoxy flame to heat the bent part until the surface turns red, so that its plasticity increases, so as to create a smooth arc along the die.
Split welding forming: This process divides a section of pipe that needs to be bent into multiple small sections of "elbows" according to preset angles, which are precisely cut from the straight pipe by wire EDM technology, and the arc A of each elbow is equal to the total bending angle A divided by the number of elbows X (i.e. a=A/X). Then, using an intelligent welding machine and titanium alloy wire of the same grade, these elbows are welded one by one in an argon protected environment to form a complete bend. This method provides precise shape control and significantly improves the impact resistance of the bend to high-temperature air waves, which is claimed to withstand instantaneous alternating pulse loads of 0.5±0.2MPa.
High-temperature hydroforming: Hydroforming titanium tubes at temperatures exceeding 800°C. For this reason, they have developed nickel-based alloy molds that can withstand this high temperature and special coatings that prevent sticking to achieve complex shapes in a single process, with high efficiency and suitable for mass production.
Choosing a titanium exhaust pipe is much more than just replacing a component, it is a comprehensive improvement in the performance, handling, texture and personality of the motorcycle. Although it is expensive and complex, its lightweight dividends, performance gains, long-term durability and irreproducible visual and auditory enjoyment make it the ultimate upgrade goal in the minds of riders who truly know how to appreciate mechanical aesthetics.
